BV4160 PREM/PREMNET
Call for Pricing

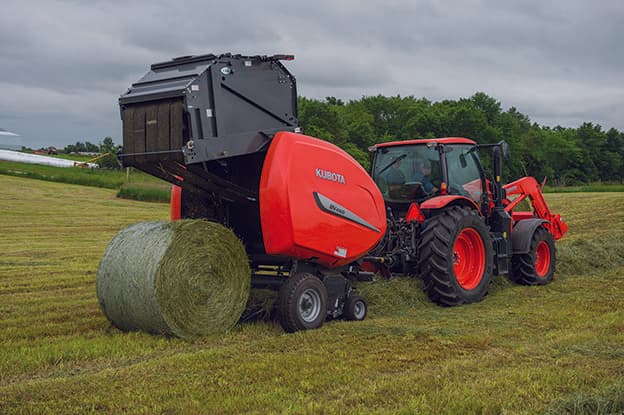

For great looking bales, season after season, you can’t go wrong with the Kubota BV4160. The high capacity pickup baler features a 4-bar 79” working width and low profile, perfect for working with efficiency and keeping crop loss at a minimum. Kubota’s PowerBind net wrap system brings you a tight wrap and is easily loaded without any tools. You’ll even control your baler from the comfort of your operator station with the Focus III terminal. Reliable and simple, the BV4160 is ready to bring you high quality bales and nothing less.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 60 Months plus $1,500 Loyalty Cash* on your new Kubota BV Series!
BALER SERIES
Specifications
1 1/4" Main Drive Chain
Bale Formation
Bale Ramp
Bale Width in.
Binding
Cam Clutch Protection
Diameter Max in.
Diameter Min in.
Driveline Chain
Flare to Flare Pickup
Focus Terminal
Fork Feeder
Height in.
Hydraulic Outlets
ISOBUS
IsoMatch Tellus
Length in.
Lift
Lift Protection
Minimum PTO Horsepower Required HP/KW
Monitor
Number of Tine Rows
PTO Protection
PTO rpm
Pneumatic Gauge Wheel
Protection, Cam Clutch
Shear Bolt Protection
Tine Spacing in.
Tine to Tine Pickup
Twine
Types of Belts
Weight lbs. (kg)
Wheels and Axles | 19.0/45-17
Wheels and Axles | 31x13.5-15
Wide Angle PTO Shaft
Width in.
Windguard
Working Width in.
1 1/4" Main Drive Chain
Standard
Bale Formation
5 Belts + 3 Rollers
Bale Ramp
Standard
Bale Width in.
47" (1.2)
Binding
Net/Twine
Cam Clutch Protection
Standard
Diameter Max in.
65" (1.7)
Diameter Min in.
31" (.8)
Driveline Chain
100
Flare to Flare Pickup
79
Focus Terminal
Standard
Fork Feeder
Standard
Height in.
106" (2.7)
Hydraulic Outlets
1SA + 1DA
ISOBUS
Optional
IsoMatch Tellus
Optional
Length in.
176" (4.5)
Lift
Hydraulic
Lift Protection
Radial Clutch
Minimum PTO Horsepower Required HP/KW
40 - 60
Monitor
Focus
Number of Tine Rows
112
PTO Protection
Slip clutch
PTO rpm
Wide angle / 540
Pneumatic Gauge Wheel
Standard
Protection, Cam Clutch
Standard
Shear Bolt Protection
Standard
Tine Spacing in.
2.36"
Tine to Tine Pickup
65
Twine
Double arm / N/A
Types of Belts
Mato Plate
Weight lbs. (kg)
5642-5842 (2559-2650)
Wheels and Axles | 19.0/45-17
Optional
Wheels and Axles | 31x13.5-15
Standard
Wide Angle PTO Shaft
Standard
Width in.
99" (2.5)
Windguard
Crop deflector
Working Width in.
79"
